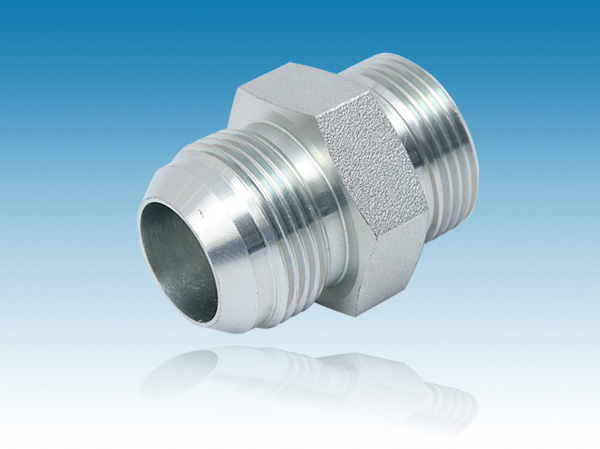

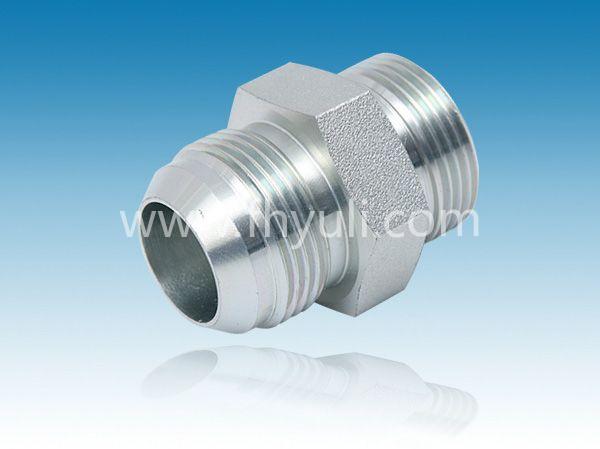

【產品名稱】 美制JIC螺紋37°直管接頭 6400系列
【所屬分類】 美制JIC螺紋37°接頭 【產品型號】 6400 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| Product ID | Description | TUBE O.D. | B1 SAE 37 | B2 SAE ORB | B1 DRILL | B2 DRILL | L5 LGTH | C4 HEX |
| 6400-02-02-O | 02MJ-02MORB Straight | 1/8 | 5/16-24 | 5/16-24 | 0.062 | 0.062 | 1.06 | 0.438 |
| 6400-02-06-O | 02MJ-06MORB Straight | 1/8 | 5/16-24 | 9/16-18 | 0.062 | 0.297 | 1.19 | 0.688 |
| 6400-03-02-O | 03MJ-02MORB Straight | 3/16 | 3/8-24 | 5/16-24 | 0.125 | 0.062 | 1.10 | 0.500 |
| 6400-03-03-O | 03MJ-03MORB Straight | 3/16 | 3/8-24 | 3/8-24 | 0.125 | 0.125 | 1.10 | 0.500 |
| 6400-03-04-O | 03MJ-04MORB Straight | 1/4 | 3/8-24 | 7/16-20 | 0.125 | 0.172 | 1.16 | 0.562 |
| 6400-04-02-O | 04MJ-02MORB Straight | 1/4 | 7/16-20 | 5/16-24 | 0.172 | 0.062 | 1.17 | 0.500 |
| 6400-04-03-O | 04MJ-03MORB Straight | 1/4 | 7/16-20 | 3/8-24 | 0.172 | 0.125 | 1.17 | 0.562 |
| 6400-04-04-O | 04MJ-04MORB Straight | 1/4 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 1.23 | 0.562 |
| 6400-04-05-O | 04MJ-05MORB Straight | 1/4 | 7/16-20 | 1/2-20 | 0.172 | 0.234 | 1.23 | 0.625 |
| 6400-04-06-O | 04MJ-06MORB Straight | 1/4 | 7/16-20 | 9/16-18 | 0.172 | 0.297 | 1.29 | 0.688 |
| 6400-04-08-O | 04MJ-08MORB Straight | 1/4 | 7/16-20 | 3/4-16 | 0.172 | 0.391 | 1.37 | 0.875 |
| 6400-04-10-O | 04MJ-10MORB Straight | 1/4 | 7/16-20 | 7/8-14 | 0.172 | 0.484 | 1.49 | 1.000 |
| 6400-04-12-O | 04MJ-12MORB Straight | 1/4 | 7/16-20 | 1-1/16-12 | 0.172 | 0.609 | 1.66 | 1.250 |
| 6400-05-04-O | 05MJ-04MORB Straight | 5/16 | 1/2-20 | 7/16-20 | 0.234 | 0.172 | 1.23 | 0.562 |
| 6400-05-05-O | 05MJ-05MORB Straight | 5/16 | 1/2-20 | 1/2-20 | 0.234 | 0.234 | 1.23 | 0.625 |
| 6400-05-06-O | 05MJ-06MORB Straight | 5/16 | 1/2-20 | 9/16-18 | 0.234 | 0.297 | 1.29 | 0.688 |
| 6400-05-08-O | 05MJ-08MORB Straight | 5/16 | 1/2-20 | 3/4-16 | 0.234 | 0.391 | 1.37 | 0.875 |
| 6400-05-10-O | 05MJ-10MORB Straight | 5/16 | 1/2-20 | 7/8-14 | 0.234 | 0.484 | 1.49 | 1.000 |
| 6400-06-03-O | MJ-MB STRT | 3/8 | 9/16-18 | 3/8-24 | 0.297 | 0.125 | 1.30 | 0.687 |
| 6400-06-04-O | 06MJ-04MORB Straight | 3/8 | 9/16-18 | 7/16-20 | 0.297 | 0.172 | 1.27 | 0.687 |
| 6400-06-05-O | 06MJ-05MORB Straight | 3/8 | 9/16-18 | 1/2-20 | 0.297 | 0.234 | 1.27 | 0.687 |
| 6400-06-06-O | 06MJ-06MORB Straight | 3/8 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 1.30 | 0.688 |
| 6400-06-08-O | 06MJ-08MORB Straight | 3/8 | 9/16-18 | 3/4-16 | 0.297 | 0.391 | 1.38 | 0.875 |
| 6400-06-10-O | 06MJ-10MORB Straight | 3/8 | 9/16-18 | 7/8-14 | 0.297 | 0.484 | 1.50 | 1.000 |
| 6400-06-12-O | 06MJ-12MORB Straight | 3/8 | 9/16-18 | 1-1/16-12 | 0.297 | 0.609 | 1.66 | 1.250 |
| 6400-06-16-O | 06MJ-16MORB Straight | 3/8 | 9/16-18 | 1-5/16-12 | 0.297 | 0.844 | 1.68 | 1.500 |
| 6400-08-04-O | 08MJ-04MORB Straight | 1/2 | 3/4-16 | 7/16-20 | 0.391 | 0.172 | 1.49 | 0.875 |
| 6400-08-05-O | 08MJ-05MORB Straight | 1/2 | 3/4-16 | 1/2-20 | 0.391 | 0.234 | 1.49 | 0.875 |
| 6400-08-06-O | 08MJ-06MORB Straight | 1/2 | 3/4-16 | 9/16-18 | 0.391 | 0.297 | 1.44 | 0.812 |
| 6400-08-08-O | 08MJ-08MORB Straight | 1/2 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 1.48 | 0.875 |
| 6400-08-10-O | 08MJ-10MORB Straight | 1/2 | 3/4-16 | 7/8-14 | 0.391 | 0.484 | 1.60 | 1.000 |
| 6400-08-12-O | 08MJ-12MORB Straight | 1/2 | 3/4-16 | 1-1/16-12 | 0.391 | 0.609 | 1.76 | 1.250 |
| 6400-08-14-O | 08MJ-14MORB Straight | 1/2 | 3/4-16 | 1-3/16-12 | 0.391 | 0.719 | 1.76 | 1.375 |
| 6400-08-16-O | 08MJ-16MORB Straight | 1/2 | 3/4-16 | 1-5/16-12 | 0.391 | 0.844 | 1.79 | 1.500 |
| 6400-08-20-O | 08MJ-20MORB Straight | 1/2 | 3/4-16 | 1-5/8-12 | 0.391 | 1.078 | 1.87 | 1.875 |
| 6400-10-04-O | 10MJ-04MORB Straight | 5/8 | 7/8-14 | 7/16-20 | 0.484 | 0.172 | 1.65 | 0.937 |
| 6400-10-06-O | 10MJ-06MORB Straight | 5/8 | 7/8-14 | 9/16-18 | 0.484 | 0.297 | 1.71 | 1.000 |
| 6400-10-08-O | 10MJ-08MORB Straight | 5/8 | 7/8-14 | 3/4-16 | 0.484 | 0.391 | 1.64 | 1.000 |
| 6400-10-10-O | 10MJ-10MORB Straight | 5/8 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 1.70 | 1.000 |
| 6400-10-12-O | 10MJ-12MORB Straight | 5/8 | 7/8-14 | 1-1/16-12 | 0.484 | 0.609 | 1.86 | 1.250 |
| 6400-10-14-O | 10MJ-14MORB Straight | 5/8 | 7/8-14 | 1-3/16-12 | 0.484 | 0.719 | 1.86 | 1.375 |
| 6400-10-16-O | 10MJ-16MORB Straight | 5/8 | 7/8-14 | 1-5/16-12 | 0.484 | 0.844 | 1.89 | 1.500 |
| 6400-10-20-O | 10MJ-20MORB Straight | 5/8 | 7/8-14 | 1-5/8-12 | 0.484 | 1.078 | 1.97 | 1.875 |
| 6400-12-06-O | 12MJ-06MORB Straight | 3/4 | 1-1/16-12 | 9/16-18 | 0.609 | 0.297 | 1.86 | 1.125 |
| 6400-12-08-O | 12MJ-08MORB Straight | 3/4 | 1-1/16-12 | 3/4-16 | 0.609 | 0.391 | 1.94 | 1.125 |
| 6400-12-10-O | 12MJ-10MORB Straight | 3/4 | 1-1/16-12 | 7/8-14 | 0.609 | 0.484 | 1.88 | 1.125 |
| 6400-12-12-O | 12MJ-12MORB Straight | 3/4 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 1.97 | 1.250 |
| 6400-12-14-O | 12MJ-14MORB Straight | 3/4 | 1-1/16-12 | 1-3/16-12 | 0.609 | 0.719 | 1.96 | 1.375 |
| 6400-12-16-O | 12MJ-16MORB Straight | 3/4 | 1-1/16-12 | 1-5/16-12 | 0.609 | 0.844 | 1.99 | 1.500 |
| 6400-12-20-O | 12MJ-20MORB Straight | 3/4 | 1-1/16-12 | 1-5/8-12 | 0.609 | 1.078 | 2.08 | 1.875 |
| 6400-12-24-O | 12MJ-24MORB Straight | 7/8 | 1-1/16-12 | 1-7/8-12 | 0.609 | 1.312 | 2.15 | 2.125 |
| 6400-14-08-O | 14MJ-08MORB Straight | 7/8 | 1-3/16-12 | 3/4-16 | 0.719 | 0.391 | 1.96 | 1.250 |
| 6400-14-10-O | 14MJ-10MORB Straight | 7/8 | 1-3/16-12 | 7/8-14 | 0.719 | 0.484 | 2.02 | 1.250 |
| 6400-14-12-O | 14MJ-12MORB Straight | 7/8 | 1-3/16-12 | 1-1/16-12 | 0.719 | 0.609 | 1.99 | 1.250 |
| 6400-14-14-O | 14MJ-14MORB Straight | 7/8 | 1-3/16-12 | 1-3/16-12 | 0.719 | 0.719 | 1.99 | 1.375 |
| 6400-14-16-O | 14MJ-16MORB Straight | 7/8 | 1-3/16-12 | 1-5/16-12 | 0.719 | 0.844 | 2.02 | 1.500 |
| 6400-16-06-O | 16MJ-06MORB Straight | 1 | 1-5/16-12 | 9/16-18 | 0.844 | 0.297 | 1.93 | 1.375 |
| 6400-16-08-O | 16MJ-08MORB Straight | 1 | 1-5/16-12 | 3/4-16 | 0.844 | 0.391 | 2.01 | 1.375 |
| 6400-16-10-O | 16MJ-10MORB Straight | 1 | 1-5/16-12 | 7/8-14 | 0.844 | 0.484 | 2.07 | 1.375 |
| 6400-16-12-O | 16MJ-12MORB Straight | 1 | 1-5/16-12 | 1-1/16-12 | 0.844 | 0.609 | 2.04 | 1.375 |
| 6400-16-14-O | 16MJ-14MORB Straight | 1 | 1-5/16-12 | 1-3/16-12 | 0.844 | 0.719 | 2.04 | 1.375 |
| 6400-16-16-O | 16MJ-16MORB Straight | 1 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.844 | 2.04 | 1.500 |
| 6400-16-20-O | 16MJ-20MORB Straight | 1 | 1-5/16-12 | 1-5/8-12 | 0.844 | 1.078 | 2.12 | 1.875 |
| 6400-16-24-O | 16MJ-24MORB Straight | 1 | 1-5/16-12 | 1-7/8-12 | 0.844 | 1.312 | 2.20 | 2.125 |
| 6400-20-12-O | 20MJ-12MORB Straight | 1-1/4 | 1-5/8-12 | 1-1/16-12 | 1.078 | 0.609 | 2.30 | 1.688 |
| 6400-20-16-O | 20MJ-16MORB Straight | 1-1/4 | 1-5/8-12 | 1-5/16-12 | 1.078 | 0.844 | 2.33 | 1.688 |
| 6400-20-20-O | 20MJ-20MORB Straight | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1.078 | 1.078 | 2.17 | 1.875 |
| 6400-20-24-O | 20MJ-24MORB Straight | 1-1/4 | 1-5/8-12 | 1-7/8-12 | 1.078 | 1.312 | 2.24 | 2.125 |
| 6400-20-32-O | 20MJ-32MORB Straight | 1- 1/4 | 1-5/8-12 | 2-1/2-12 | 1.078 | 1.781 | 2.40 | 2.750 |
| 6400-24-16-O | 24MJ-16MORB Straight | 1 -1/2 | 1-7/8-12 | 1-5/16-12 | 1.312 | 0.844 | 2.53 | 2.750 |
| 6400-24-20-O | 24MJ-20MORB Straight | 1-1/2 | 1-7/8-12 | 1-5/8-12 | 1.312 | 1.078 | 2.53 | 2.750 |
| 6400-24-24-O | 24MJ-24MORB Straight | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1.312 | 1.312 | 2.37 | 2.125 |
| 6400-24-32-O | 24MJ-32MORB Straight | 1-1/2 | 1-7/8-12 | 2-1/2-12 | 1.312 | 1.781 | 2.53 | 2.750 |
| 6400-32-20-O | 32MJ-20MORB Straight | 2 | 2-1/2-12 | 1-5/8-12 | 1.781 | 1.078 | 2.94 | 2.750 |
| 6400-32-24-O | 32MJ-24MORB Straight | 2 | 2-1/2-12 | 1-7/8-12 | 1.781 | 1.312 | 2.94 | 2.625 |
| 6400-32-32-O | 32MJ-32MORB Straight | 2 | 2-1/2-12 | 2-1/2-12 | 1.781 | 1.781 | 2.78 | 2.750 |
